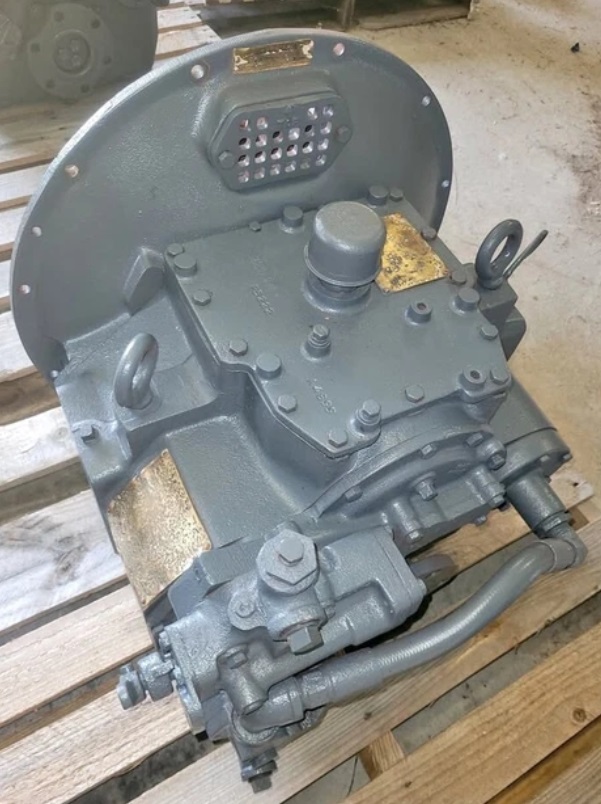

Hot Sale !! Twin Disc MG-509 Ratio 2.0:1 Marine Transmission Parts
Ready Stock !!
Specifications :
Gear Ratio: 2.0:1
Oil Capacity: 2.2 US gallons (8.3 liters) for the SC (standard case) model
Oil Pressure: 175-200 PSI @ 1800 rpm and 180°F (82°C)
Maximum Input Speed: Up to 2300 RPM
Maximum Output Speed: Dependent on the gear ratio and vessel speed, but capable of exceeding 25 knots
Operating Temperature: 150-210°F (66-99°C)
Oil Viscosity: SAE 30W or 40W engine oil
Oil Pump Capacity: 10.6 gpm at 2400 rpm
Horsepower Capacity: Up to 800 horsepower in high-load conditions
Torque Tolerance: Typically rated for up to 2,500 Nm
Maximum Speed Limit: 3000 RPM
